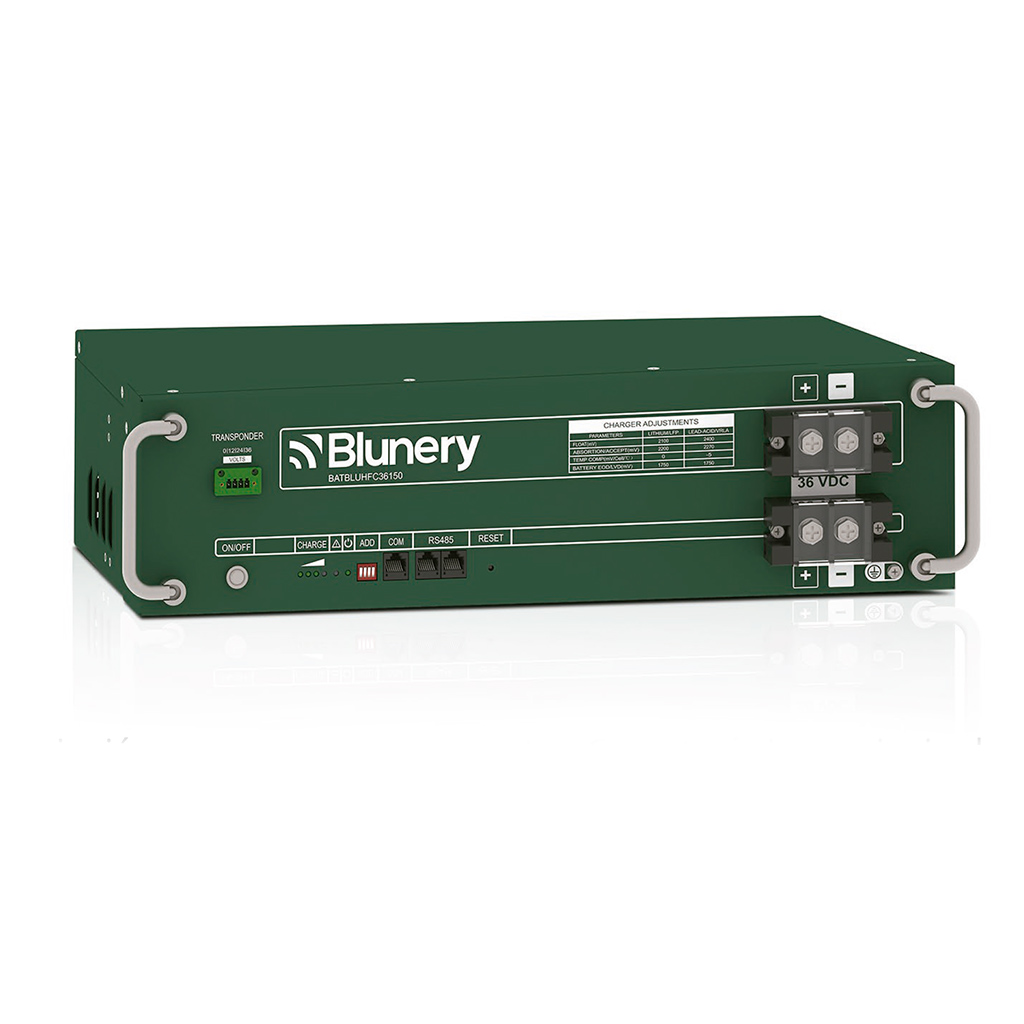

The series of LFP (Lithium-Ion-Phosphate) BATBLUHFC batteries of BLUNERY is a new environmentally friendly backup power module, specially designed for the CATV and Internet market. It has a noticiable superior life span, extra reduced size, very light weight and ready for strong environmental working conditions. This battery is the ideal solution for all the back-up needs of the UPSs deployed in the HFC networks.
Its high performance LFP cells and the proven built-in BMS’ design, make this battery fully compatible with all the power supplies in today´s marketplace.
Multiple batteries can be connected in parallel to expand capacity, so longer back-up times can be obtained.
Old and heavy lead-acid VRLA batteries can be quickly and securely replaced during any maintenance stage. No additional procedures are required, as this change is totally transparent for any installation.
KEY FEATURES
• Unique wide working (Charge) temperature range.
• The protections functions included in the embedded BMS (battery management system) are: over-discharge, over-charge, over-current and high/low temperature, etc.
• The BMS can automatically manage Charge and Discharge states and balance each cell’s current and voltage.
• More than 5000 times cycle life.
• Very small size with light weight, specially designed for retrofit in any standard outdoor cabinet.
• Back-up times are, for the average CATV UPS’s load, in the range of 150/300 minutes.
• Remote monitoring access via DOCSSIS 3.0 Transponder (future development).
